JUKI Type Computer Controlled Pattern Sewing Machine TS-2210

Short Description:

JUKI Type Computer Controlled Pattern Sewing Machine 2210 is a programmable Juki type pattern sewing machine with area 22*10cm. The machine is most representative model, widely used in the market. It is usually with Dahao computer system. Other special computer system required is also available. The machine could be added side slider or flip flop device which could sew smaller label or other attachment.

The  Juki Type Pattern Sewing Machine 2210 is suitable for decorating sewing and cascading sewing on medium size shoes, medium patterns on bags. Page joints, small size notebook cover.




Product Detail

Product Tags

Video

Advantage

1. The clear figures interface makes the operation much easy. The shape of pattern can be shown on the screen when the user edits the pattern, which provides convenience to user for confirming and modifying the pattern data.
2. The new added electronic thread holder is controlled by the solenoid. The user can change the upper thread tension via the operating board at will, which improves the accuracy for adjusting the upper thread.
3. The system uses the most-generally used USB convertor to realize the transfer of the patterns and the update of program.
4. It can be added side slider presser or flip flop.
5. The Juki Type Pattern Sewer 2210 is suitable for decorating sewing and cascading sewing on medium size shoes, medium patterns on bags. Page joints, small size notebook cover.

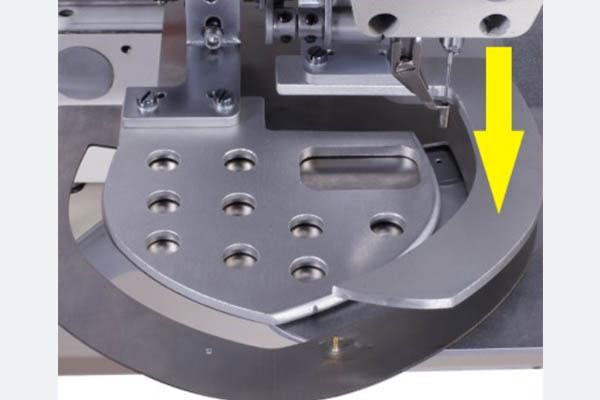

Half moon left and right clamp

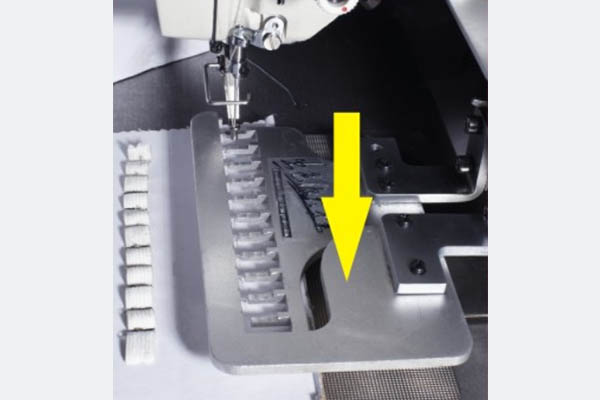

Left and right clamp for pen clip

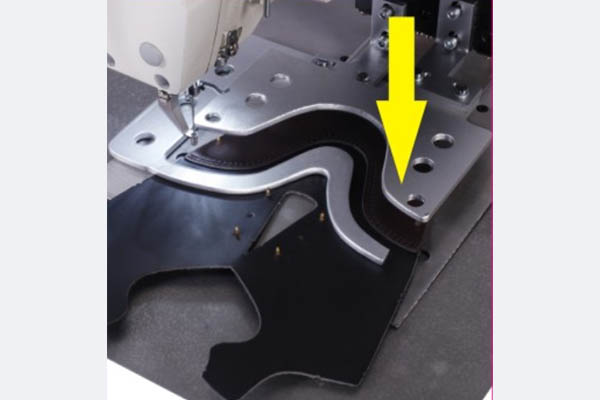

Left and right clamp for shoe face

half moon left and right clamp
left and right clamp for pen clip
left and right clamp for shoe face

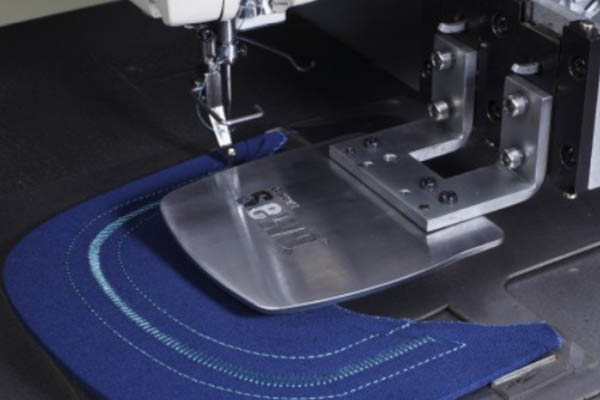

Cap visor clamp

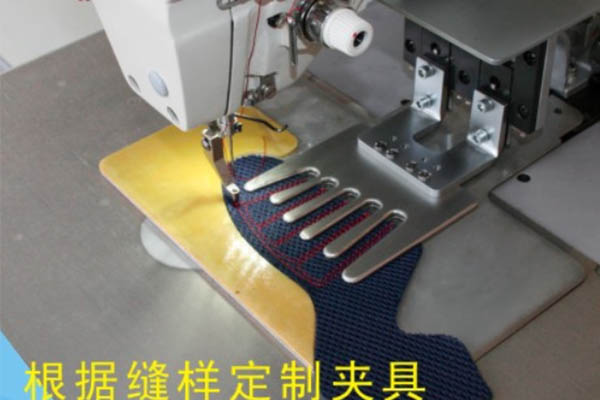

Shoe face clamp

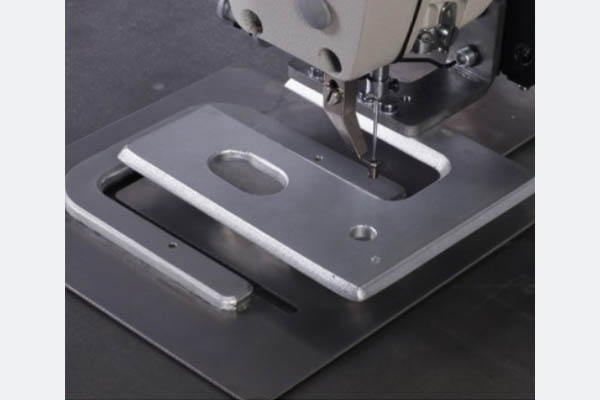

U shape clamp

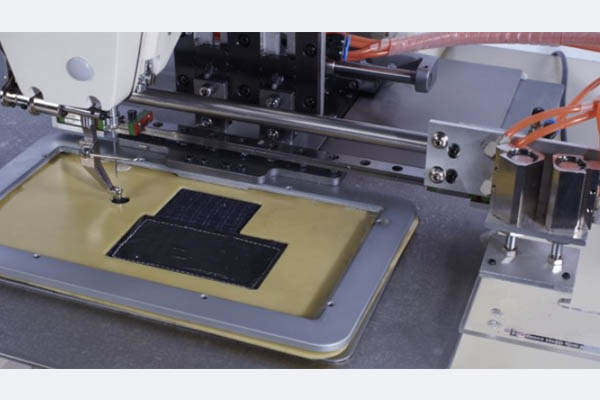

Side slide

cap  visor clamp
shoe face clamp
U shape clamp
side slide

Specifications

Model TS-2210
Highest sewing speed 2800rpm
Sewing area 220mm 100mm
Length of stitch form  0.1-12.7mm (Min Resolution: 0.05mm)
Memory capacity
Max: 40,000 stitches
Adjustable middle presser foot down position 0~3.5mm
Middle presser foot lifting height 20mm
Out presser foot lifting height  25mm
Weight 120Kg
Dimension 88X51X68cm
